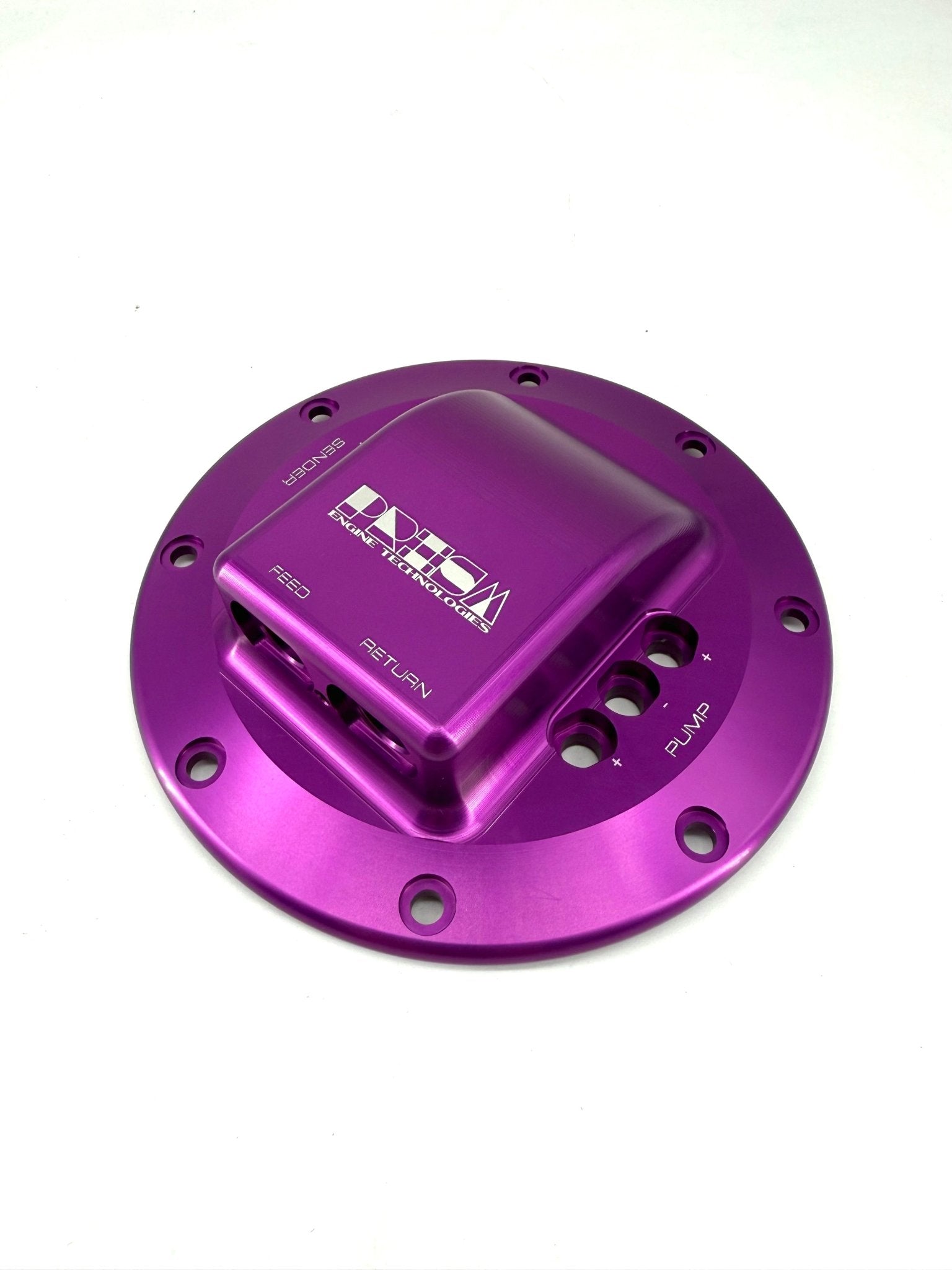

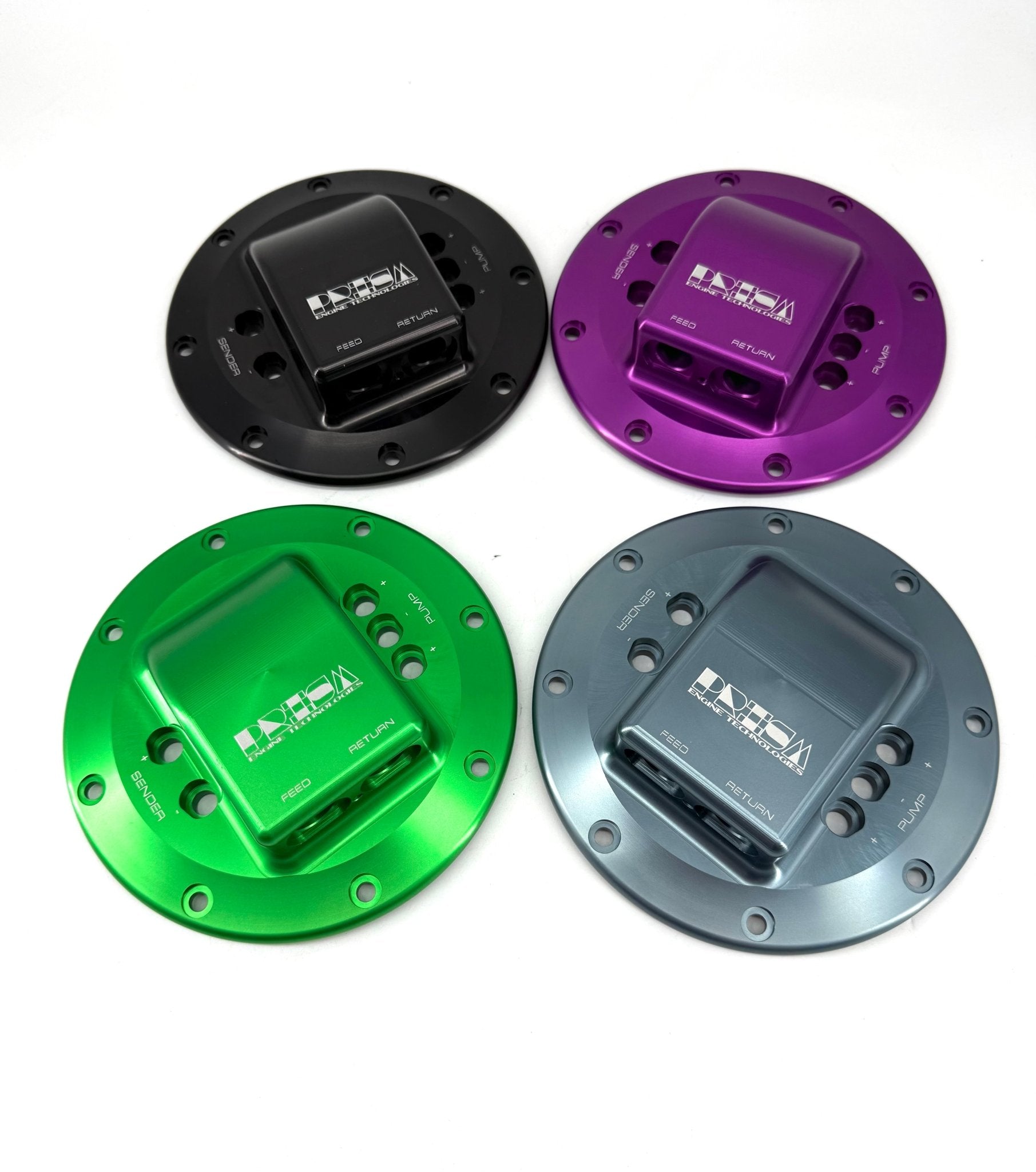

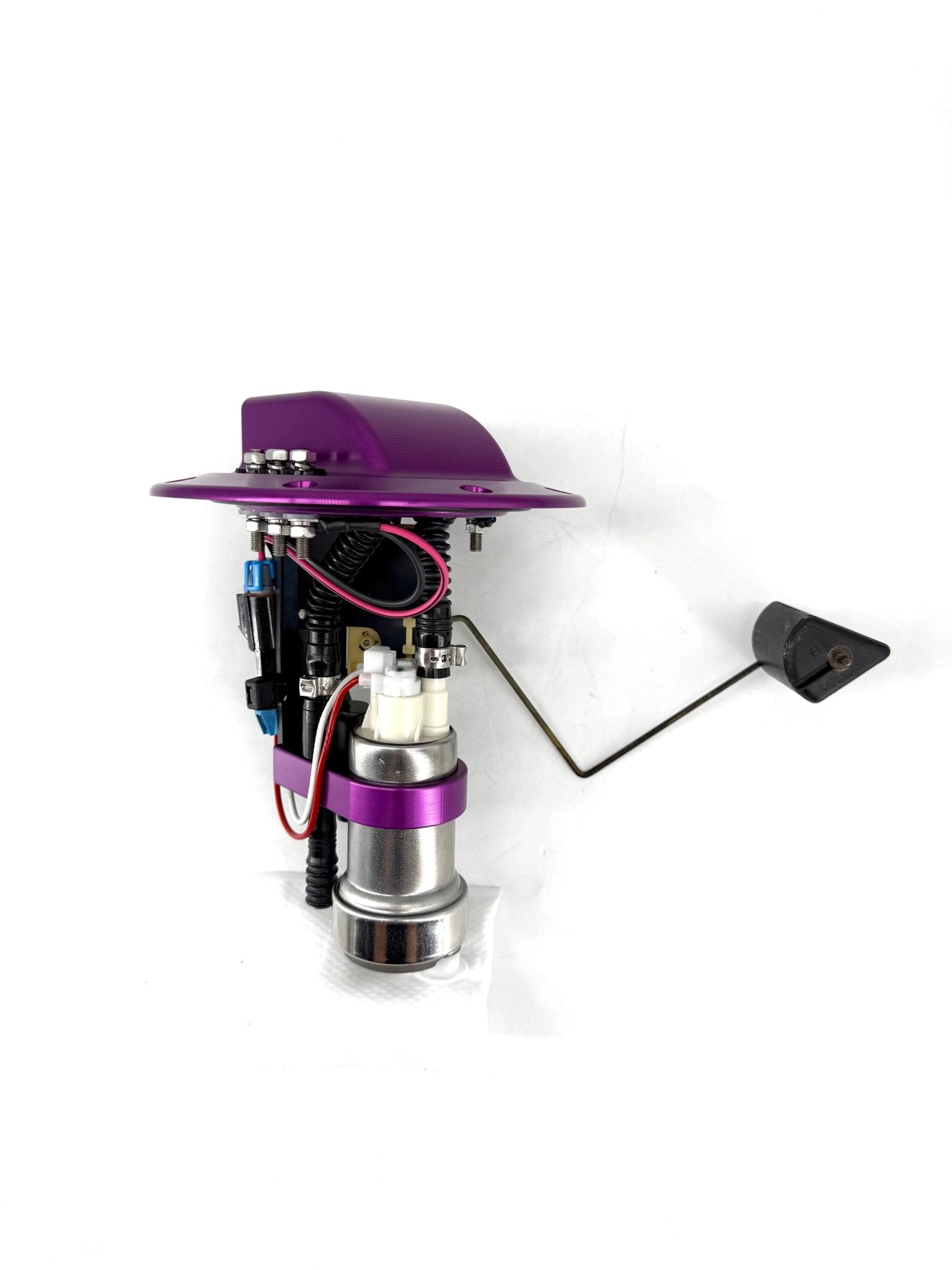

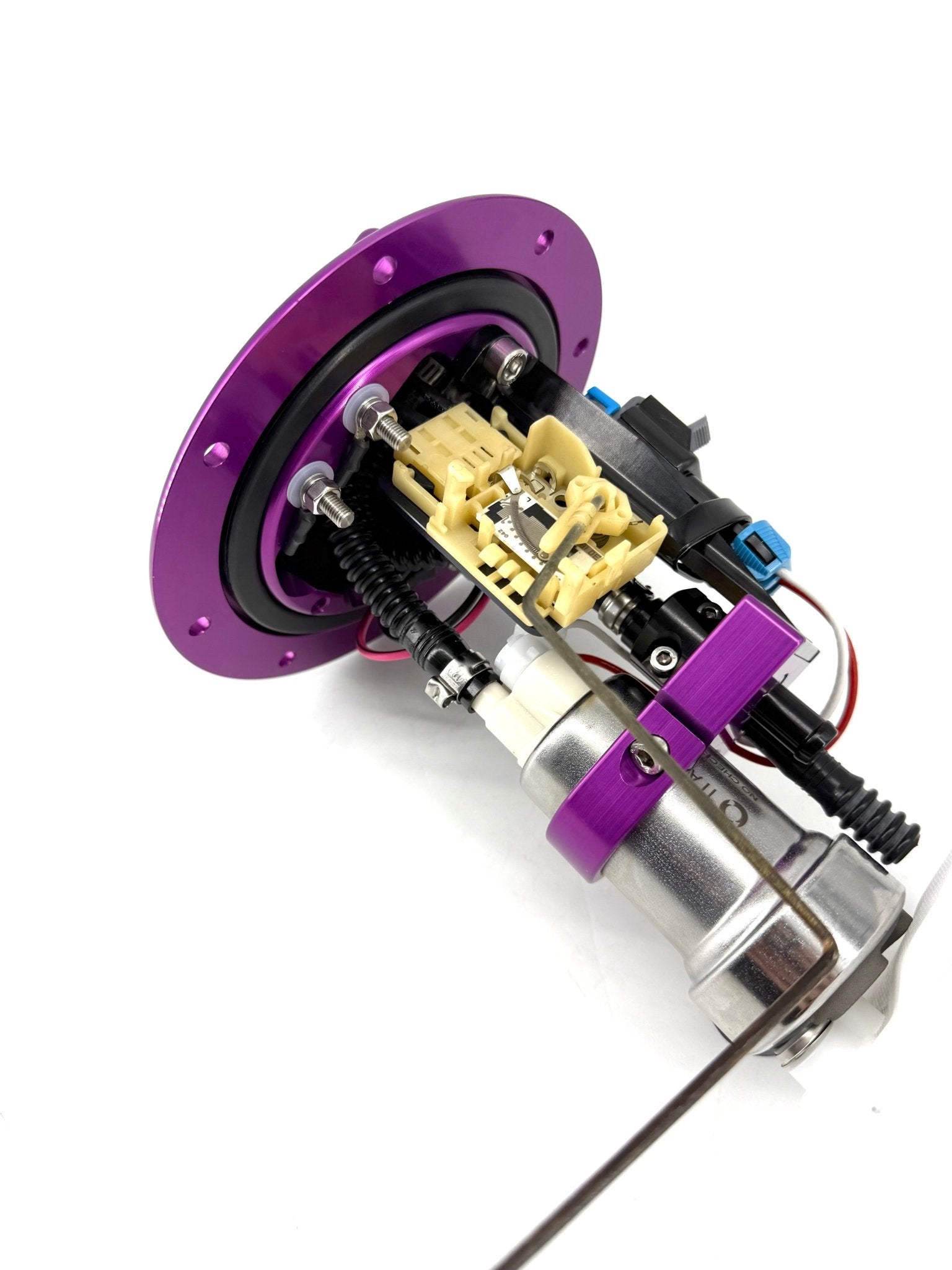

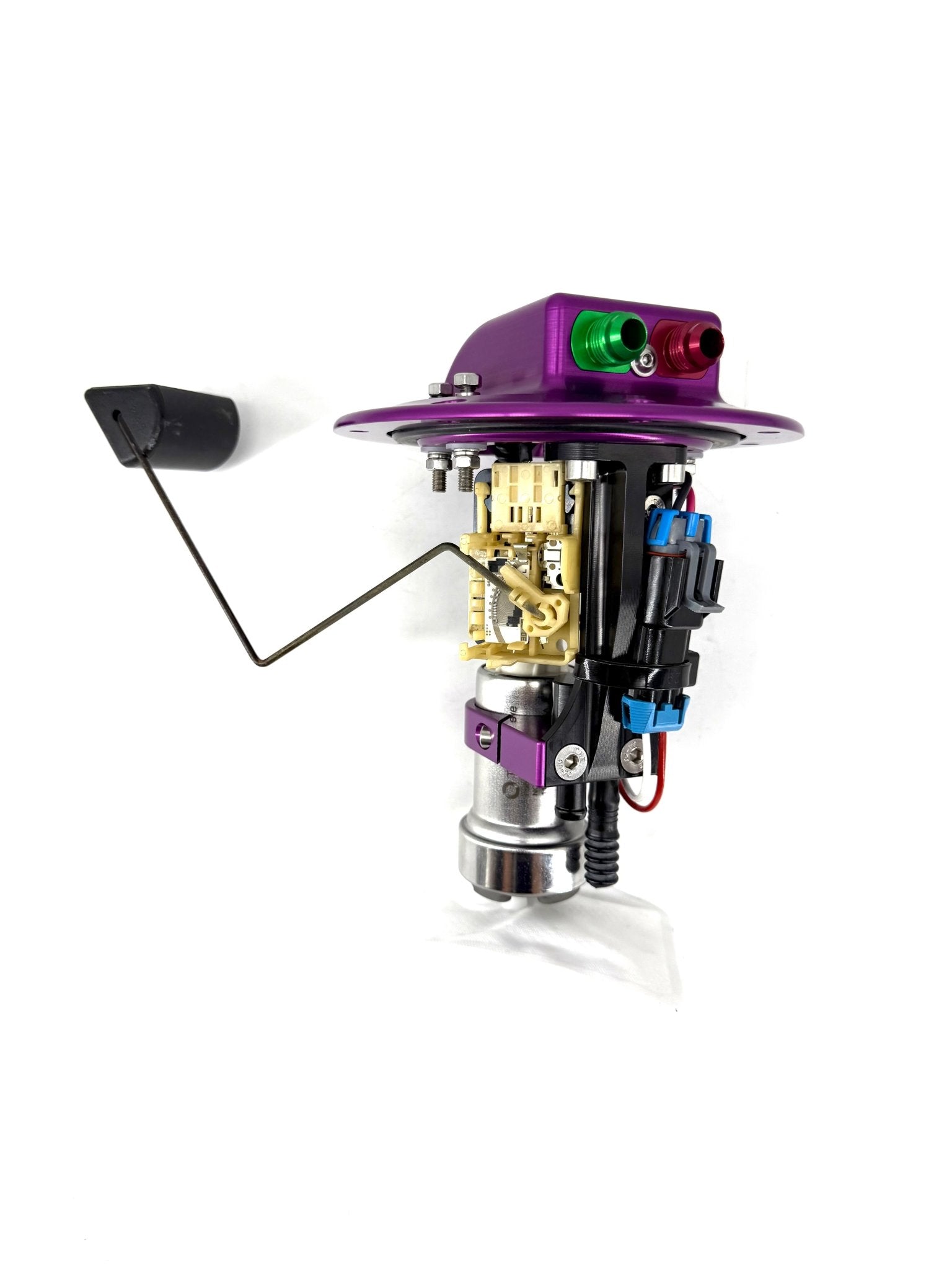

Fuel Pump Hanger

Upgrade your fuel system with the precision engineered SERIALNINE Billet Fuel Pump Hanger. Designed to seamlessly integrate highflow pumps into your OEM fuel tank. Whether you’re running an AEM, Hellcat, or other high-performance pump, this hanger makes installation clean, simple, and reliable.

• Direct Bolt-In Design: Easily mounts high flow aftermarket or OEM-style pumps (39mm OD)
• -6 AN Pass Throughs: Precision-machined dual O-ring with smooth internal transitions for unobstructed fuel flow
• Upgraded Jet Pump system tuned for highflow pumps to maintain balanced fuel delivery between saddles
• Retains your OEM factory fuel level sender for a fully functional and accurate fuel gauge.
• High Current Stainless Steel electrical Pass-Throughs with Viton O-Rings for Zero leakage
• OEM flange Gasket
• Engineered with future expandability in mind, ready to support Dual Pump, Brushless and -8AN Feed as your power goals evolve.
• Completely CNC machined in Canada from 6061-T6 aluminum for strength and precision.
• All parts anodized for corrosion resistance.
• Fully compatible with E85 and all other levels of ethanol.

All
- 1 Fuel Pump Hanger
- All applicable hardware
- OEM gasket

Pump Options
- Walbro 340 LPH
- Walbro 535 "Hellcat" (490LPH)

Fuel Line Kit Options
- OEM N/A (returnless) cars (Includes 1x -6AN line from Factory hard line -> Fuel Pump Hanger + 1x 14ft -6 AN line from FPH-> Engine Area (you terminate the end as needed)
- OEM Turbo cars (Feed/Return) (includes 2x-6AN lines from factory hard lines -> Fuel Pump Hanger)

Relay Kit
- High Current external Fuel Pump Relay Kit Option

1998 - 2005 Lexus IS300 Toyota Altezza / IS200 (JCE10 / SXE10)
1997- 2005 Lexus GS300 / GS400 / GS430 Toyota Aristo (JZS161/ UZS161)
2000 - 2004 Toyota Mark II / Verossa / Blit (JZX110 / GX110)
1999 - 2003 Toyota Crown Athlete / Crown Athlete Estate (JZS171 / JZX171W)
